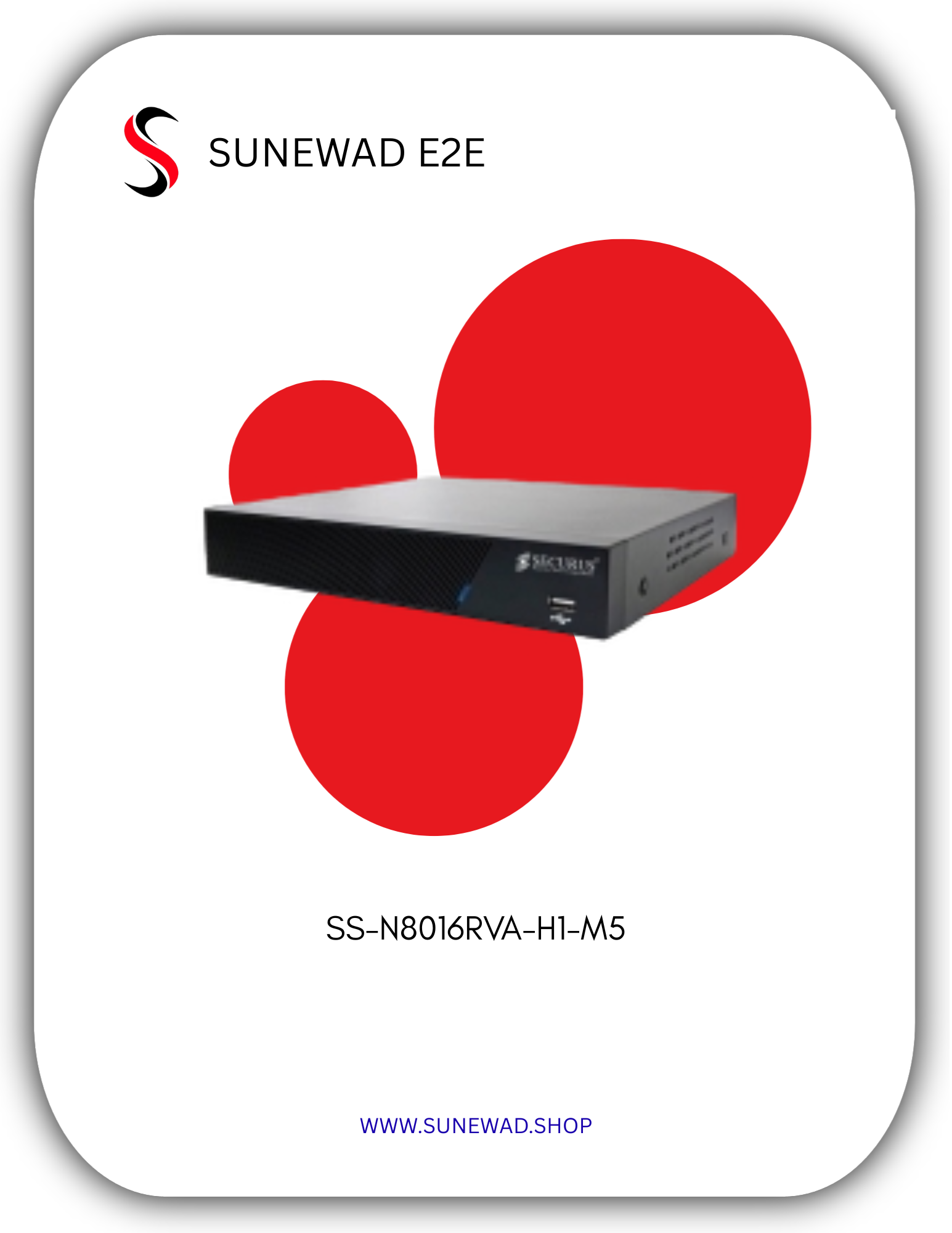

16CH NVR 5MP

Model

SS-N8016RVA-H1-M5

Make

SECURUS

User Interface

Graphic User Interface (GUI)

Operating System

Embedded Linux

Operation Mode

Preview, Record, Playback, Backup, Network

Password Security

Multi-level User Management

ONVIF

Support

Video Input

16ch 5M/16ch1080P

HDMI Output

Supports (Max : 4K)

VGA Output

Supports (Max : 1080P)

CVBS main output

N.A.

Audio output

1 Ch

Display

1/4/6/8/9/10/13/16 optional

Video standard

PAL/NTSC

Video compression

H.265AI/H.265+/H.265/H.264+/H.264

Intelligent Functions

Trip Wire, Face Detection, Human Detection

Video encoding resolution

12MP; 8MP; 5MP; 4MP; 3MP; 1080P

Video frame rate

PAL: 1-25 FPS NTSC: 1-30FPS

Video bit rate

1536kbps-3072kbps

Stream Type

Video & Audio/Video

Audio compression

G.711a

Recording mode

Always/Schedule/Alarm/  recording/Motion detection recording

Video search

Time/Channel/Event/Calendar

Display Zoom

Live Playback & Mobile

Audio bit rate

8—32kbps

Dual-stream

Supports

Mobile Monitoring

"RMEye Pro" Application for Android

And iPhone

Recording resolution

16 CH Realtime Recording

HDD Port

1 SATA

HDD Maximum Capacity

12TB for each Sata connector

Voice talk

Support; 1CH BNC line in/1CH RCA Audio out.

Record mode

Audio & Video recording simultaneously

Remote control

Supports

Network protocol

Supports IE/PPPoE/DDNS

Network Bandwidth

80Mbps Incoming / 80Mbps Outgoing

DDNS Server

www.securusddns.com

Network

1 RJ45 10M/100M

USB Connector

2 x USB 2.0

Firmware update

Support USB update/Network update

Alarm input

N.A.

Alarm output

N.A.

Power supply

NVR: DC 12V 3A

Operation Temperature

-10℃--＋55℃

Operation Humidity

10％--90％

Chassis

Standard 1.0U

Dimension

236mm (W) × 255mm (L) × 44mm (H)

Weight(without HDD)

≤1.0Kg

Certifications

CE, FCC, RoHS, BIS
